Place of Origin : China
Brand Name : Hongmen
Certification : CE
Model Number : HSG61A
MOQ : L=3m * H=1.5m
Packaging Details : Iron rack plus plywood
Delivery Time : 10 Working Days
Payment Terms : T/T
Supply Ability : 30.00m/month

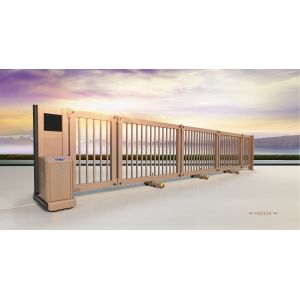

Electric Telescopic Sliding Gate With Anti- Collision IR Sensor , Powder Coating Cantilever
Sliding Gate With EMO Button
Features:
1.EMO Button (Emergency Stop Button).
2.Trackless Operation.
3.Industrial Grade Aluminium Alloy (6063-T5).
4.Wireless Remote Control (433MHz).
5.Powder Coating.
6.Dispatch In Modules Form (Transportation Friendly).
7.Smart Power Outage Clutch.
8.Anti- Collision IR Sensor.
9.Anti- Climb Photo Cell.
Specifications:
Material Specification:
| Description | Material | Specification (mm) |
| Upper Beam | 6003-T5 | 120*74*d2.5 |
| Slide Bar | 6003-T5 | 135*80*d2.5 |
| Gate Frame Post | 6003-T5 | 110*80*d3.0 |
| Rear Gate Frame Post | 6003-T5 | 80*80*d3.0 |
| Front Gate Frame Post | 6003-T5 | 80*76*d2.0 |
| Auxiliary Gate Frame | 6003-T5 | 35*29*d1.0 |
| IR Sensor Post | 6003-T5 | 70*25*d2.0 |
| Motor Tower | A3 | L397*W390*H650 |
Technical Specification:
| Descrition | Guide Motor | Swing Motor |
| Operation Voltage | DC36V | DC36V |
| Operation Temperature | -25ºC to +70ºC | -25ºC to +70ºC |
| Current | 5A | 4.63A |
| Environment Humidity | < 90% | < 90% |
| Operation Speed | 20m/min | 20m/min |
| Motor Power Rating | 1000W | 1000W |
| Motor RPM | 1800r/min | 1800r/min |
| IP Rating | IP44 | IP44 |
| Insulation Grade | E | E |
| Speed Reduction Ratio | 35: 1 | 60: 1 |
| Remote Distance | 50m (empty space) | 50m (empty space) |
|
|
